0-10ma dc 1 5/8" Meter

0-10ma dc 1 5/8" Meter
Item# 60-159
$17.10
Contact us about Availability or Special Price.

60-150 Through 60-175
1 3/4" PANEL METERS

Clear plastic face, D'Arsonval type movement, 1.73" square face. Meters fit into 1 1/2" diameter hole in panel and are calibrated to be accurate within 2%. Has zero set screw adjustment. Will enhance the looks of any equipment on which it is used. Listed below are the following sizes. Available in bulk or packaged. Comes with meter cut out template and mounting hardware. 60-201 Mounting hardware only for Calrad meters 60-150 to 60-175.

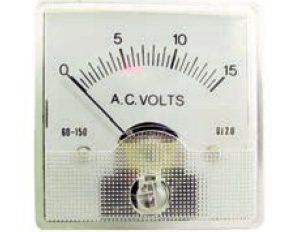

60-150, 0_15 Vac, DC resistance: 1mA/120W+DiodeBr.+15kW
60-151, 0_150 Vac, DC resistance: 1mA/120W+DiodeBr.+150kW
60-152, 0_15 Vdc, DC resistance: 1mA/120W+15kW
60-153, 0_30 Vdc, DC resistance: 1mA/120W+30kW
60-154, 0_200 Vdc, DC resistance: 1mA/120W+200kW
60-155, 0_300 Vdc, DC resistance: 1mA/120W+300kW
60-156, 0_500 Vdc, DC resistance: 1mA/120W+500kW
60-158, 0_1 mA DC, DC resistance: 1mA/120W
60-159, 0_10 mA DC, DC resistance: 10mA/3W
60-160, 0_100 mA DC, DC resistance: 10mA/3W+par.Shunt 0.2x46
60-161, 0_200 mA DC, DC resistance: 10mA/3W+par.Shunt 0.4x55
60-163, 0_500 mA DC, DC resistance: 10mA/3W+par.Shunt 0.5x40
60-165, 0_50 _A DC, DC resistance: 50_A/2400W
60-166, 0_100 _A DC, DC resistance: 100_A/1200W
60-167, 0_200 _A DC, DC resistance: 200_A/600W
60-168, 0_500 _A DC, DC resistance: 500_A/300W
60-169, 50_0_50 _A DC, DC resistance: _50_A/1200W
60-171, 0_10 Amp DC, DC resistance: 10mA/3W+par.Shunt 1.3x19
60-172, 0_30 Amp DC, DC resistance: 10mA/3W+par.Shunt 2.3x24
60-175, VU, DC resistance: 600_+DiodeBr.+3.9kW
