ATI 7-pin mini DIN The S-Video and RCA connectors

ATI 7-pin with S-Video & RCA for XCLAIM VR
ATI 7-pin with S-Video & RCA for XCLAIM VR
Item# ATI-7-Pin-SV-RCA
Regular price: $19.95
Sale price: $9.95

ATI 7-pin with S-Video & RCA for XCLAIM VR

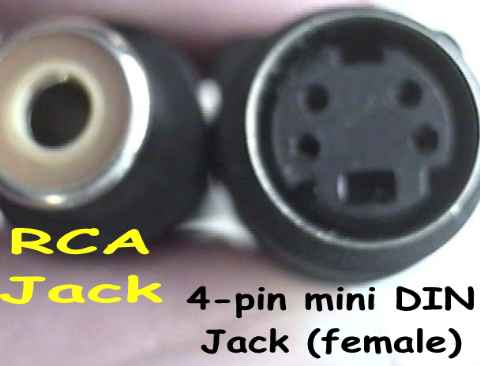

7-pin mini DIN connector on one end and:

  • One female RCA Composite Video Jack and,
  • One female S-Video 4-pin mini DIN jack on the other end


    • This adapter is used on some ATI cards to output either the S-Video signal (on the 4-pin mini DIN) and the Composite Video on the RCA Jack.

    In addition, this adapter was used on many Compaq computers that bundled the ATI board. Some models of the Compaq Presario 53XX computers require this adapter.
