CCTV Power-Thru Converter Balun

500024-CNV Power-Thru Converter Balun
500024-CNV Power-Thru Converter Balun
Item# 500024cnv
$100.00
Contact us about Availability or Special Price.

Connect inexpensive 12VDC video cameras to a 24V AC CCTV power supply using the 500024-CNV in conjunction with the compatible products below.

The 500024-CNV converts 24V AC to DC in order to allow 12V DC cameras to be remotely powered from a central 24V AC CCTV power supply. In addition, by using one Cat 5e/6 cable you do not have to install multiple cables for the power and video.
Applications

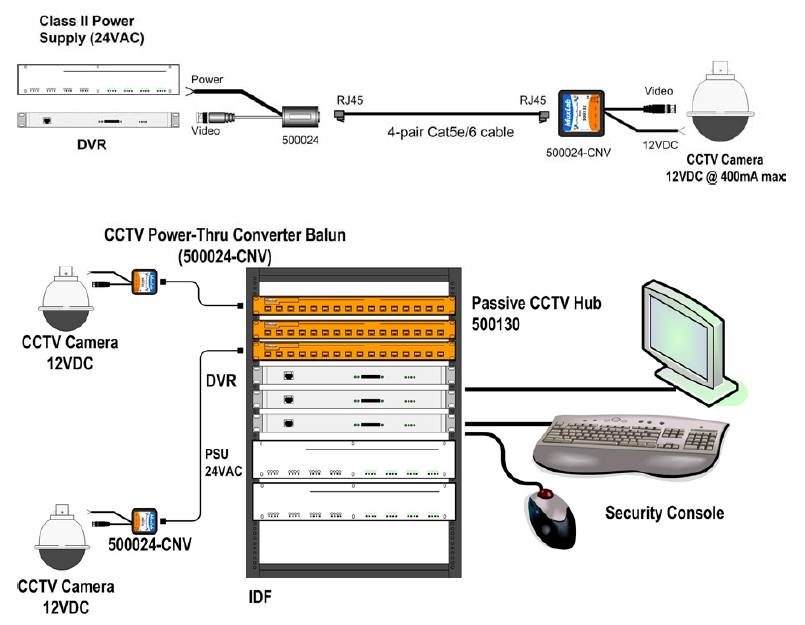

Only one CCTV Power-Thru Converter Balun is installed at the camera side and works in conjunction with the following products:
  • CCTV Power-Thru Balun (500024)
  • CCTV LongReach II Active Receiver (500124)
  • CCTV LongReach II Active Receiver 8-Port Hub (500126)
  • CCTV LongReach II Active Receiver 16-Port Hub (500127)
  • Passive CCTV Power Integrator Hub (500136)
  • Passive CCTV Hub (500130)

    The balun supports video up to 2,200 ft (670m) via Cat 5e/6 UTP, and transmits 24V AC up to 795 ft (242m) @ 400mA max.

    Availability: Please call for availability.
