Component Video, Audio and IR over CAT5 Kit

Component Video, Audio and IR over CAT5 Kit
Component Video, Audio and IR over CAT5 Kit
Item# 500090
$499.00

Component Video with Stereo Audio, Digital Audio and IR Pass-Through over CAT5.

This Kit includes both the transmitter and receiver and the power supply.

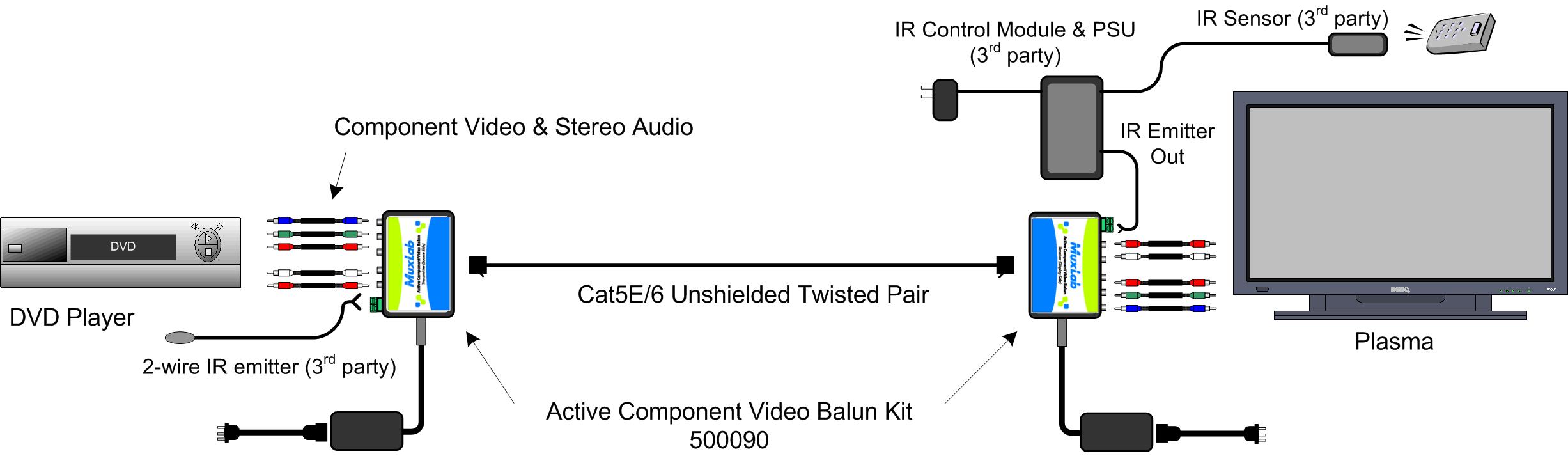

To see an application diagram, click here.

This Active Component Video Balun Kit allows component video, analog stereo audio and/or digital audio, and one IR-emitter signal to be transmitted via a cost-effective unshielded copper twisted cable (Cat5e/6) in a point-to-point configuration.

The product supports simultaneous stereo audio and digital audio transmission. The product provides an IR-emitter pass-Through connectivity, supports up to 1080p resolution, and features manual brightness and sharpness adjustments.

Applications include digital signage, residential, boardroom, classroom, and home theatre video systems.

Key Features
- Up to 1,000 ft (305m) via Cat5e/6 @ 480i/p
- Up to 500 ft (152m) via Cat5e/6 @ 1080p
- Supports simultaneous stereo and digital audio
- IR-Emitter pass-Through
- Manual brightness compensation
- Manual sharpness compensation
- Ground loop isolation

Availability: ships same day.

Accessories

IR Emitter
$19.95
IR Emitter 500998
IR Sensor
$24.95
IR Sensor 500999
