Cam-IQ™ 140 - Add IQ to Existing Cameras

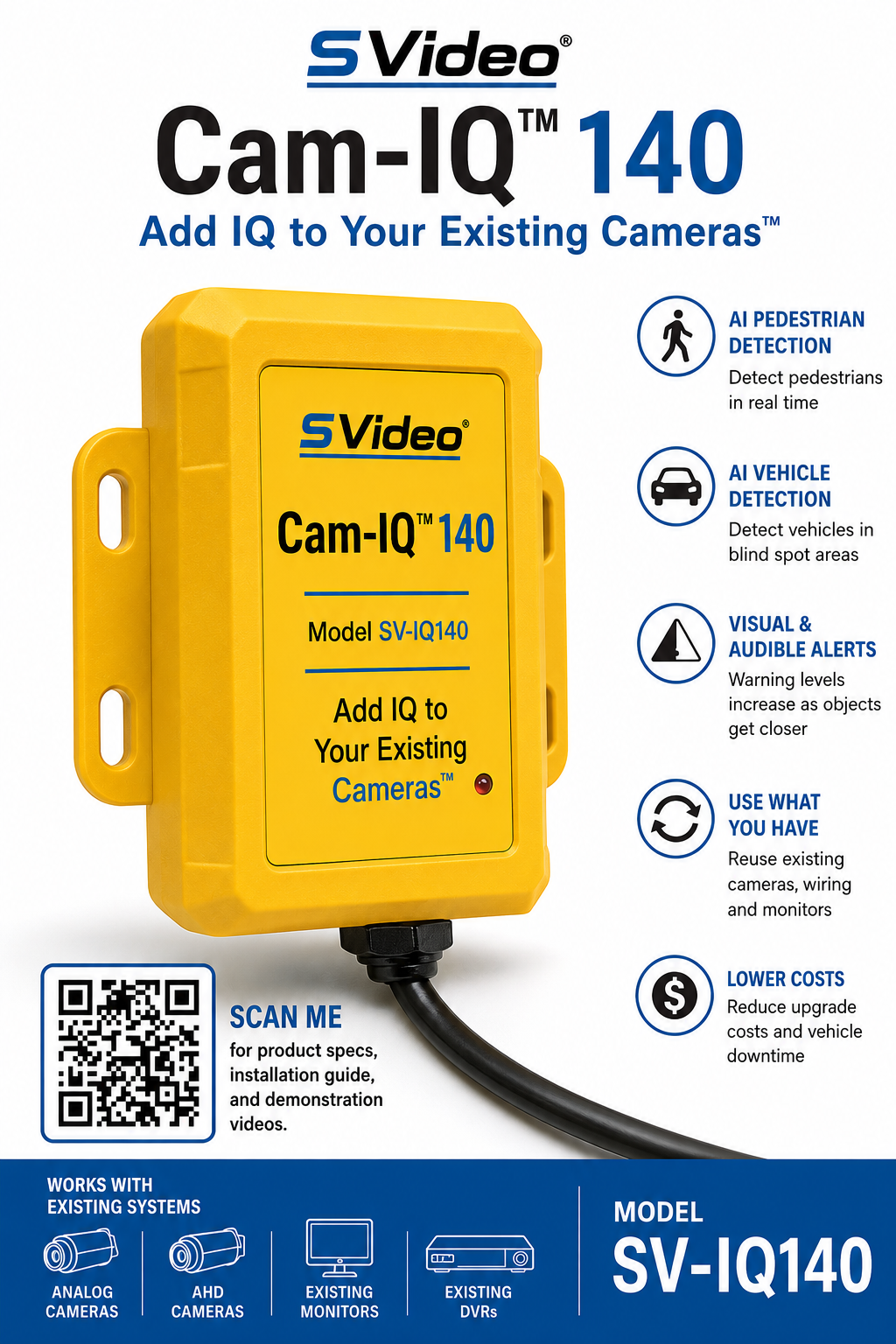

SVideo Cam-IQ™ 140 - Item # SV-IQ140
Add AI Detection to Your Existing Cameras™
Cam-IQ™ 140 is an inline AI module designed for plug-and-play installation with compatible existing video systems. The Cam-IQ™ analyses the camera's signal to detect pedestrians and vehicles that enter a user-defined detection zone and places real-time, color-coded visual and audible alerts to the monitor.
Cam-IQ™ 140 supports compatible standard analog video, including Composite Video (CVBS-480i), and Analog High Definition (AHD) video, including AHD 720p and AHD 1080p. It also provides an alarm-output wire with a 12V high-level warning trigger for compatible external alarm inputs.
In most compatible installations, no camera, monitor, DVR, or existing video-cable replacement is required. Keep the equipment you already own and add local AI detection alerts without replacing the complete camera system.
Cam-IQ™ 140 is available in three connector configurations to match common mobile camera/monitor installations. Each unit includes the cables to connect the camera and monitors. Select the connector type from the drop-down menu before ordering. The default configuration has 4-pin aviation connectors. You can also order it with standard 4-pin mini-DIN connectors or 4-pin threaded Ingress Protection (IP) connectors for Safety Vision cameras
We also offer an optional adapter that breaks out the video, audio and power on the connectors above and allows you to connect to security systems with BNC or RCA connectors. Contact us if you want to add AI to your existing security system.
Cam-IQ™ 140 is a local driver-assistance accessory. It is not a cellular, GPS, telematics, remote-access, cloud, or video-recording system. Contact us if you want a full system upgrade with AI.
- No cellular modem, cellular service, or data plan
- No remote viewing or remote access
- No GPS tracking or telematics reporting
- No cloud service, cloud account, or cloud subscription
- No internal video recording or video storage
- No AI-event metadata transmission to a DVR
Why Cam-IQ™ 140?
Traditional analog cameras send a plain video signal to a monitor or DVR. Cam-IQ™ 140 adds local AI video and audio detection alerts (AI-VADA.™. When pedestrians or vehicles enter a user-defined detection zone, Cam-IQ™ 140 helps improve driver awareness with color-coded visual and audio alerts.
- Add AI pedestrian and vehicle detection to compatible existing cameras
- Reuse compatible CVBS, AHD 720p, and AHD 1080p camera systems
- Keep existing wiring, monitors, and compatible DVR equipment
- Add real-time color-coded visual alerts to the live video image
- Operate locally without internet, cellular service, or cloud processing
- Reduce camera-system replacement costs
- Minimize vehicle installation downtime
- Improve driver awareness around configured detection zones
How Cam-IQ™ 140 Works
Cam-IQ™ 140 analyzes incoming video from compatible CVBS and AHD cameras in real time using an integrated Neural Processing Unit.
The system identifies pedestrians and vehicles and places visual warning overlays onto the outgoing video image. The processed video can then be displayed on an existing monitor or supplied to a compatible DVR.
For an alarm condition, a 12V high-level warning output is available for connection to a compatible DVR or external alarm input alarm. The connected equipment may respond according to its own alarm-input configuration.
The green wire is a warning trigger output only. It is not intended to power a DVR, alarm, light, camera, or other equipment. Verify alarm-input compatibility and wiring requirements before installation.
Key Features
- AI Camera Retrofit – Add AI detection to compatible existing CVBS and AHD camera systems.
- Pedestrian Detection – Detect pedestrians entering configured monitoring zones.
- Vehicle Detection – Detect vehicles entering configured blind-spot or monitoring zones.
- Local Edge Processing – Video is analyzed locally without cloud processing or cellular connectivity.
- Real-Time Processing – Video detection latency of less than 100 milliseconds under favorable conditions.
- Every-Frame Analysis – AI analyzes every frame at selectable 25 FPS or 30 FPS operation.
- Configurable Detection Zones – Configure monitoring areas for specific vehicle and camera applications.
- Visual Warning Overlays – Warning indications are placed directly onto the outgoing video image.
- External Alarm Trigger – Provides a 12V high-level warning output for a compatible external alarm input.
- Existing Monitor and DVR Compatibility – Processed video can be displayed or recorded by compatible external equipment.
- Plug-and-Play Inline Design – Designed for simple inline installation with compatible existing CVBS and AHD camera systems.
DVR and AI-Event Integration
Cam-IQ™ 140 does not send pedestrian, vehicle, BSD, or other structured AI-event information to a DVR. The alarm wire provides only a high-level electrical warning trigger.
A compatible DVR may respond to the alarm input by starting a configured recording, activating an alarm response, or performing another supported action. Available responses depend entirely on the DVR model and its configuration.
Any searchable AI event, pedestrian event, vehicle event, or BSD event created by a DVR is generated by the DVR's own AI functions. It is not generated or transmitted as an AI event by Cam-IQ™ 140.
Cam-IQ™ 140 does not record or store video. When connected to a DVR, all recording and storage functions are performed by the DVR.
Supported NTSC and PAL Video Formats
- CVBS analog
- AHD 720p
- AHD 1080p
Supported Camera Positions
- Left side
- Right side
- Front
- Rear
Detection Zones
| Zone | Description | Warning Level |
|---|---|---|
| Green | Object detected at a safer distance. | Low-level visual warning. |
| Yellow | Object approaching the vehicle. | Increased visual warning. |
| Red | Object within the immediate warning area. | Highest visual warning level. |
Performance Specifications
| Product Name | SVideo Cam-IQ™ 140 |
| Model Number | SV-IQ140 |
| Product Function | Inline local AI video-detection accessory |
| AI Processor | 0.5 TOPS Neural Processing Unit |
| Video Input | CVBS/composite 480i, AHD 720p, AHD 1080p |
| Video Output | Output corresponding to the selected CVBS or AHD input resolution |
| Frames Per Second | 25 FPS or 30 FPS selectable |
| AI Processing | Every frame analyzed |
| Video Latency | Less than 100 ms* |
| Detection Latency | Less than 100 ms* |
| Detection Range | Approximately 0.5 to 10 meters* |
| Detection Accuracy | Up to 95% under favorable conditions* |
| Alarm Output | 12V high-level warning trigger through the green alarm wire |
| Alarm Connection | Compatible external alarm input |
| DVR AI-Event Communication | Not supported; no AI-event metadata is transmitted to the DVR |
| Video Recording | No internal recording or storage; a separate DVR is required for recording |
| Remote Access | Not included |
| Cellular Connectivity | Not included |
| GPS and Telematics | Not included |
| Cloud Service | Not included; no cloud subscription required |
*Actual performance may vary based on camera placement, object size, vehicle speed, weather, lighting, detection-zone configuration, and installation quality.
Typical Applications
- School bus camera systems
- Transit bus safety systems
- Delivery vehicle camera upgrades
- Utility fleet cameras
- Construction equipment monitoring
- Commercial fleet safety systems
Safety Notice
Cam-IQ™ 140 is a driver-assistance accessory designed to improve awareness of pedestrians and vehicles that enter a configured detection zone.
The system does not replace mirrors, direct observation, properly functioning vehicle safety equipment, safe driving practices, or compliance with traffic laws.
Detection may be affected by camera placement, visibility, lighting, weather, object size, installation quality, and other operating conditions. Drivers remain responsible for safe vehicle operation at all times.
SVideo Cam-IQ™ 140
Add AI Detection to Your Existing Cameras™
Add AI detection of pedestrians and vehicles to compatible existing CVBS and AHD mobile camera systems without replacing the complete camera installation.
