SVFA-705 - 7 Inch Digital TFT-LCD Monitor with 2 Inputs

7 Inch Digital TFT-LCD Car Reverse Monitor.

Contact us for special prices.

View full screen up to 2 cameras. Cameras optional.

Name: 7 Inch Digital TFT-LCD Car Reverse Monitor

Model No.: SVFA-705

Screen Size: 7 Inch Digital TFT-LCD Car Reverse Monitor

Aspect Ratio: 0.672916666666667

Resolution: 800xRGBx480 (1024X600 IPS HD Screen optional)

Video Input: 2 Way Input

Speaker: Optional

System: PAL & NTSC

Remote Control: Yes

Power Supply: Input Power: DC12V-36V, Output Power: DC12V

Bracket: U Shape Bracket

Connector: RCA or 4-PIN (select when ordering)

Warranty: 1 Year

7 Inch Digital TFT-LCD Car Reverse Monitor


• SVFA-705 Specifications:
• 7 Inch Digital Car Reverse Monitor
• Aspect ratio: 16:9 Wide Screen
• High Resolution:800*R.G.B*480 (1024X600 IPS HD Screen optional)
• Back Light luminance: 250cd/m2
• 2 way video input,1 way trigger
• Power Supply: Input Power: DC12V-36V, Output Power: DC12V
• System: NTSC & PAL (automatically)
• OSD Language: English, Deutsch, French, Spanish, Portuguese, Italian, Dutch, Chinese
• Automatically switch to V2 when reversing
• With UN-Removable Sunshade design, With Metal U Shape Bracket
• Built-in Speaker (optional)
• Material: ABS
• View Angle: Hor. L(45) R(45)  Ver. UP(45) DOWN(45)
• Storage temperature: -30°C ~80°C
• Working temperature:-20°C ~ 70°C
• Power consumption: 5W
• Size: 178.5x118.5x23mm

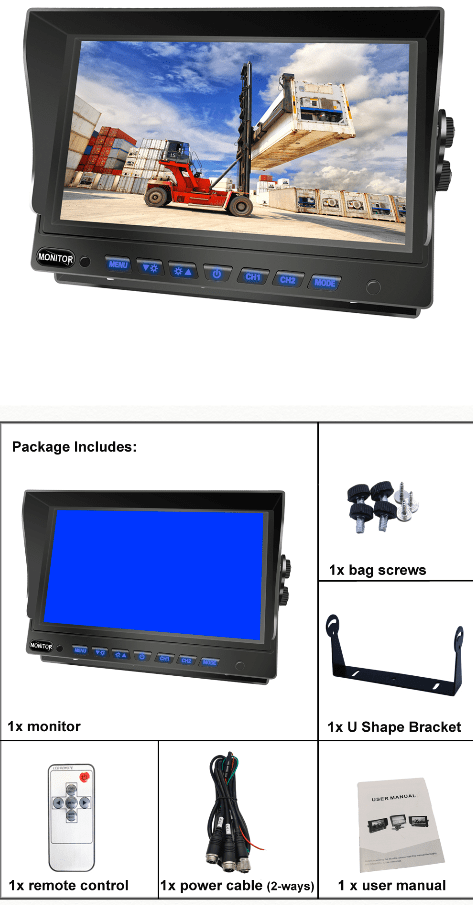

• Accessories: Remote controller, Power supply cable, User manual, Bracket
• Connector: 4-Pin Connector or RCA Connectors (select when ordering)
