Voyager 48-Port Fiber Optic Matrix Routing Platform
The VG-48 Voyager Matrix Routing Platform is modular and scalable and can be field configured in increments of 8 inputs and/or outputs up to a maximum of 48x48.

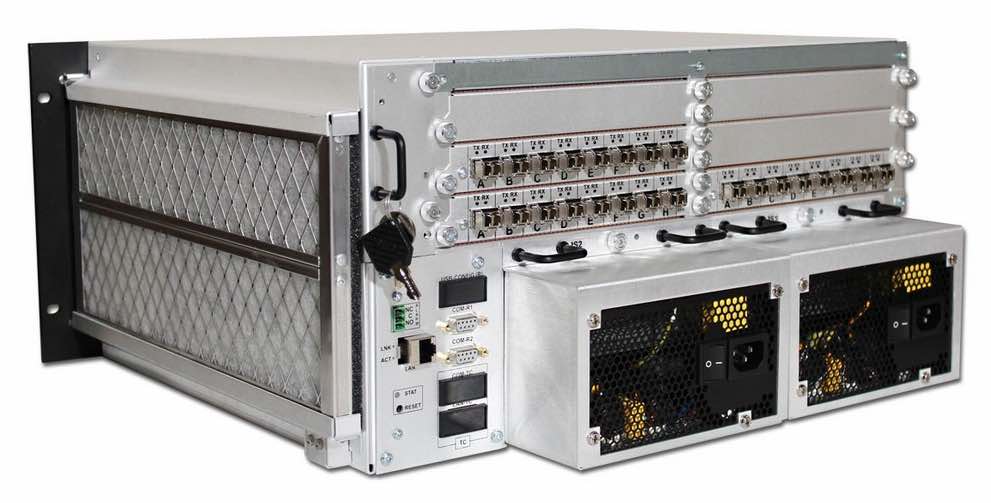

The picture shown here shows a switch with three 8-port Fiber Input/Fiber (I/O) cards and three blank plates for illustration purposes. The VG-Matrix 48 Platform has space for six (6) of the 8-port Fiber I/O cards for up to 48 inputs and outputs to create a 48x48 fiber optic switch. You can add Fiber I/O cards to connect seamlessly to the fiber inputs or outputs of Voyager transmitters and receivers delivering matrix switching and long distance extension in one platform._
Fully populated, a 48x Voyager VG-Matrix operates as a 48x48 in simplex mode. In duplex mode, which supports two-way RS-232 and HDCP, the switch can operate as 1x47, 2x46, 47x1, 46x2, or any possible combination in between, thanks to Magenta's Flex I/O technology.
The picture shown here shows a switch with three 8-port Fiber Input/Fiber (I/O) cards and three blank plates for illustration purposes. The VG-Matrix 48 Platform has space for six (6) of the 8-port Fiber I/O cards for up to 48 inputs and outputs to create a 48x48 fiber optic switch. You can add Fiber I/O cards to connect seamlessly to the fiber inputs or outputs of Voyager transmitters and receivers delivering matrix switching and long distance extension in one platform._
Fully populated, a 48x Voyager VG-Matrix operates as a 48x48 in simplex mode. In duplex mode, which supports two-way RS-232 and HDCP, the switch can operate as 1x47, 2x46, 47x1, 46x2, or any possible combination in between, thanks to Magenta's Flex I/O technology.
- Features of the 48-port and 160-port Platform:
- Fiber Optic Cable Required:
- LC-terminated, fiber-optic cables
- When using multi-mode SFP optic modules: Compatible with standard OM1 through OM4-grade (and better) cables.
- When using single-mode SFP optic modules: Compatible with standard OS1, OS2-grade (and better) cables. Please refer to the Voyager user guide for additional details regarding fiber-optic cables.
- Compliance CE, FCC Part 15 Class A, C-Tick, cTUVus, RoHS
- Serial Characteristics
- Default Serial Format: 9600 baud rate, no parity, 8 data bits, 1 stop bit (9600,n,8,1)
- Available Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
- Available Data Formats: 7- or 8-bit ASCII (high bit is forced to 0)
- Available Parity Bits: Odd, even, none, mark, space
- Available Stop Bits: 1, 1.5, 2, none
- Available Handshaking: None
- Connectors
- USB (Host): 3, Type _A_ (if Touchscreen PC option is installed)
- USB (Device): 1 Type, _B_
- Serial: 3, DB-9F (plus 1, DB-9M if Touchscreen PC option is installed)
- LAN: 1, RJ-45 (plus 1, RJ-45 if Touchscreen PC option is installed)
- Alarm Relay: 3-pin Phoenix
- 160-Port I/O: Up to 160 SFP Transceiver Modules (Duplex LC Connector).
- 48-Port I/O: Up to 48 SFP Transceiver Modules (Duplex LC Connector).
- Temperature Tolerance
- Operating: 32 to 104_F (0 to 40_C);
- Storage: -4 to +140_F (-20 to +60_C)
- Humidity Tolerance Up to 80% non-condensing
- Air Filter Recommended service interval: 30 days
- Enclosure Type
- Front Panel: Powder coat over aluminum
- Enclosure: Aluminum
- Power
- 110 - 240VAC, 50/60Hz, 9A per Power Supply Module
- 2 independent fully-redundant AC Mains inputs
- Size
- 160-Port: 15.75" H x 19.0" W x 16.9" D (40 cm H x 48.3 cm W x 43 cm D)
- 48-Port: 8.75_ H x 19.0_ W x 16.9_ D (22.23 cm H x 48.3 cm W x 43 cm D)
- Weight
- 160-Port: 50.0 lb. (22.7 kg) maximum (depends on configuration)
- 48-Port: 27.0 lb (12.2 kg) maximum (depends on configuration)
- MTBF 100,000 hours
- Rack Mount
- 160-Port: Standard, 9 RU x 19_ EIA
- 48-Port: Standard, 5 RU x 19_ EIA
