Magenta ENCODER-100
The Magenta Encoder-100 encodes an HDMI signal with L-PCM audio into an H.264/MEG4 stream; it is the perfect partner gear for CORIOmaster series video processors:
The ENCODER-100 provides easy set up of IP Streams with the CORIOgrapher software:
Will automatically recognize the Magenta ENCODER-100, even if it is on a different subnet.
Encoding Capability:Up to full 1080p/60 and 1920 x 1200 video and audio using H.264 compression procamp control for changes to brightness, contrast, saturation and hue. Supports widescreen and standard aspect ratios at all standard resolutions.
Remote System Management: Feed remote locations with content from your CORIOmaster.
Stream a CORIOmaster output to be able to monitor your systems remotely or view on your PC or mobile devices
The ENCODER-100 provides easy set up of IP Streams with the CORIOgrapher software:
Encoding Capability:
Remote System Management:
-
Specifications:

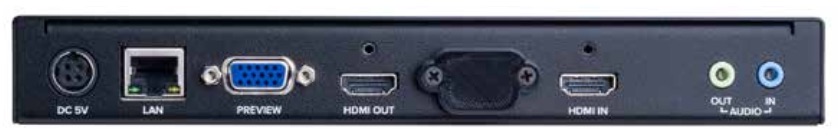

- Video Input: HDMI w/ L-PCM audio
- Resolutions: up to 1920x1080p60, 1920x1200
- Video Output (loop out): HDMI w/ L-PCM audio, w/ optional scaling;
- Preview mode: HDMI & VGA
- Resolutions: up to 1920x1080p60, 1920x1200
- Audio Support: L-PCM audio via HDMI
- Audio Line-In: 3.5mm analog stereo audio
- Audio Line-Out (loop out): 3.5mm analog stereo audio
- Network Connector: RJ45
- Compression Standard: H.264/MPEG4 Part 10 (AVC)
- Bit Rates: 100Kbps to 20Mbps
- Power: 100-240V AC In, 5VDC Out, 15W DIN4 Locking power connector
- Environmental:
- Operating Temperature: 0 to 45_ C
- Non-Operating: -40 to 55_ C
- Operating Humidity: 20 to 80% (non- condensing)
- Non-Operating Humidity: 5 to 95% (non-condensing)
- MTBF: 135.05 years @ 40_ C
- Fanless: (no moving parts)
- Warranty: 2 years
- Product Item Number: Magenta Encoder 100
