Details about our exclusive Video Converter for the AppleTV:Product Description:
This product converts component analog video (also known as YPbPr) to S-Video and Composite Video. The product automatically detects the NTSC
(480i, 60Hz, 525 lines) or the PAL
(576i, 50Hz, 625 lines) and outputs to the corresponding S-Video and Composite Video Signal. There are no switches or settings the user needs to configure, you just connect the unit to the component video source and to the display (TV, projector, etc.)Installation:
- Connect a component video cable from your video source to this converter making sure that you match the colors (red, blue, green) on the cables from your source to the converter.
- Connect an S-Video cable or Composite Video cable from this converter to the s-video or composite video input on a TV, projector, etc.
- Plug the power plug into the converter and slip the power cable through the plastic strain relief.
- Plug the wall transformer into a power outlet. The green light on the converter should light up.
- If the video source permits the video output format to be changed (such as on the AppleTV) it must be set to 480i (60Hz for NTSC) or to 576i (50Hz for PAL).Specifications:
- Signal Input Format: YPbPr (NTSC 480i, 60Hz or PAL 576i, 50Hz)
- Input Connectors: RCA (Green, Blue, Red)
- Input Impedance: 75 Ohms
- Signal Output Format: S-Video
- Output Connectors: 4-pin Mini-DIN for S-Video and RCA receptable for Composite Video.
- Output Impedance: 75 Ohms
- Power Voltage: 9V AC (ungrounded) - power supply is extra
- Power Status: Green LED
- Temperature: -40C to +80C
- Weight: .5 lb (without the power supply
- Power Supply for USA, Japan, Canada, Mexico, Caribbean, Central Amercia and South America: Ships with Class 2 Transformer, Input: AC 120V 60H 9W; Output: 9V
- Power Supply for other countries: Multi Plug Transformwer, Voltage-Input 90 ~ 264 VAC, Voltage-Output 9VDC, Current-Output 2A, Output Power 18W, Lead Free, RoHS Compliant.
To see a Video of the how to select the 480i TV Resolution on the AppleTV click here.
Flash is required to view the video that will open in a new browser window.
Our converter was designed by svideo.com in the USA and it is made in the USA.

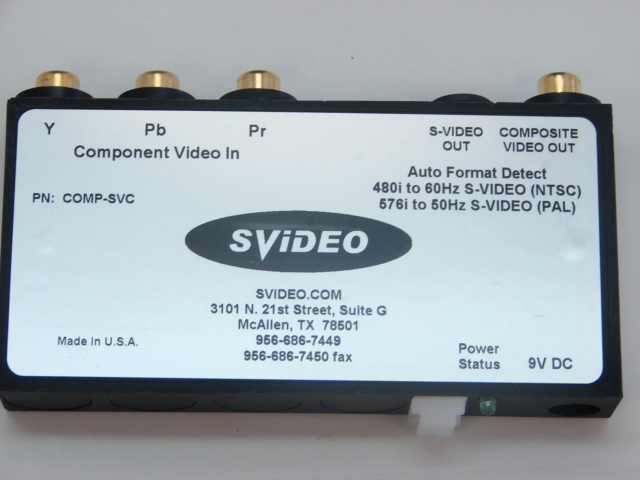

This converter takes the component video output (red, blue and green connectors) and converts it to S-video or composite video.How it Works with the AppleTV:
1. Connect your AppleTV to the converter using component video cables.
2. Connect the S-Video output from the converter to the S-Video input on your TV. You can also connect the Composite Video output (yellow RCA) to the composite video input on your Television or other input device.
3. Connect the power supply to the converter. The 9V AC Power Supply is extra - select either the US or Euro Power Supply.
4. Connect the audio from the AppleTV directly to your TV.
5. Select the 480i (NTSC) or 576i (PAL) TV Resolution on the AppleTV by going to "Settings" then "TV Resolution" then "480i" or "576i". NTSC is the video format for USA, Canada, Caribbean, Japan and most of Latin America. PAL is for Europe, Australia, New Zealand and other countries.
6. Enjoy your AppleTV on a standard TV.
The AppleTV outputs videos on a "widescreen" aspect ratio, also known as 16:9 (pronounced 16 by 9) aspect ratio. With this product you can connect your AppleTV to a DVD Recorder and record to DVD at the same aspect ratio. In addition, this converter will allow you to see the videos on standard TVs that have a 4:3 aspect ratio.
Our converter features automatic NTSC/PAL video format detection and is available with US, European power supplies.
Note: this converter only converts from
Component Video to S-Video and not from S-Video to Component Video. If you need to go from Composite Video or S-Video to Component Video, please consider our Composite Video and S-Video to Component Video Converter.*FBI ANTI-PIRACY WARNING:
