Details regarding the 7-pin to S-Video+RCA. This adapter has a male
7-pin connector on one end and a female
4-pin receptacle for svideo and yellow RCA jack for composite video.
Click on the picture for a larger image. The 7-pin connector has the 7-pins...it looks like the female connector but it really is the male connector with the 7-pins and the rectangular key.

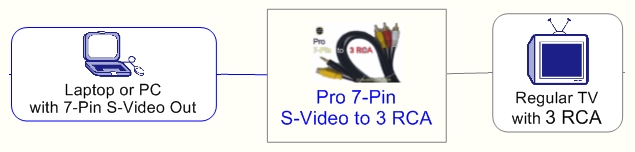

Please note: If you're going from a 7-pin connector on your computer to a regular, yellow RCA video jack, then consider any of our Pro S-Video to 3 RCA
adapters that are compatible with both 7-pin and 4-pin connectors. Those adapters will provide you with a "straight-shot" solution and some also provide you with both the audio and video.
This picture shows: 7-pin plug (that plugs into the 7-pin jack of your computer) and a 4-pin S-Video Jack and Composite (RCA-type) jack. Both of these connectors are joined by a cable that is about 5 inches long. For the audio output, consider our optional PC Audio Adapters

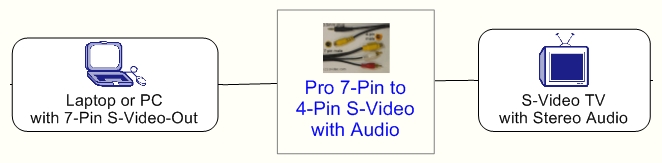

. If you want to connect this adapter to an S-Video TV, then purchase our optional S-Video Cables
Before you order, see if your laptop has a 7-pin jack
to connect the 7-pin connector.
If your laptop has a 4-pin svideo, then consider as an alternative consider our Pro S-Video to 3 RCA
that also provides you audio and video.
