Item# 2211078-02

HD-One LX Kit - Extend 4K HDMI, IR and RS232 to 200 ft. or 1080p to 328 ft.
See a short, silent video of this HDMI extender below:
The HD-One LX Kit allows you to extend HDMI plus IR with bi-directional RS-232 controls up to 328 ft. at 1080p and 200 ft. at 4K resolution. To extend the signals up to 500 ft. consider the HD-One LX500 Kit.

The kit is part 2211078-02. If you do not need IR or RS232 controls, then consider the DX Series kit.

The Magenta HD-ONE LX HDMI IR and RS-232 Extender Kit delivers reliable uncompressed high-definition video over a single UTP CAT5e/6/6e/7 cable to a distance of up to 328 feet (100m); the HD-One LX500 kit can send the signal up to 500 feet. The kit consists of a transmitter and an extender unit. This LX series extender offers additional support for bi-directional RS-232 and 2-way IR signals.

The LX receiver is also tunable to 3 different IR bands (36.7, 38.0 or 58.8 kHz). This extender kit is fully HDCP compliant and features plug-and-play functionality. UTP cables are both cost-effective and easy to terminate in the field making it easy for extending and HDMI or DVI source to almost any display.

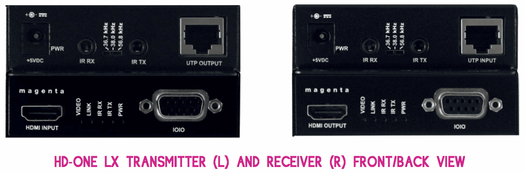

HD-ONE LX - HDMI Video and Audio Extension Kit includes one transmitter, one receiver, a set of IR emitter/receiver cables and two universal power supplies for the transmitter and receiver.

The HD-One LX Transmitter is part no. 2211095-02.

The HD-One LX Receiver is part no. 2211096-02.

    See the unboxing of the HD-One LX and HD-One DX Series below:

    HD-One Series
      HD-One DX to extend HDMI up to 328 ft.:
  • Kit: 2211079-03
  • TX: 2211093-02
  • RX: 2211094-02
    • HD-One LX to extend AV, IR, and RS232 over UTP up to 328 ft.:
  • Kit:2211078-02
  • TX: 2211095-02
  • RX: 2211096-02
    • HD-One DX500 to extend HDMI up to 500 ft.:
  • Kit: 2211114-02
  • Tx: 2211121-01
  • RX: 2211122-01
  • HD-One LX500 to extend AV, IR, and RS232 over UTP up to 500 ft.:
  • Kit: 2211113-02
  • TX: 2211123-01
  • RX: 2211124-01
    • Key Features of the HD-One LX/DX and LX500/DX500 Series:
  • 1920x1080, 1080P/60, Resolution, 4K UHD (HD-One LX/DX)
  • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  • Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
  • No Adjustments or Tuning Required
  • 328'/100 Meter Reach
  • 200'/60 Meter Reach 4k Resolutions (HD-One LX/DX)
  • 500’/152 Meter Reach (HD-One LX500/DX500)
  • HDMI 1.4 Compliant, HDBaseT
  • HDCP Compliant
  • Bi-Directional RS-232 Interface (HD-One LX/LX500)
  • Two-Way IR Support (HD-One LX/LX500)
  • Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
  • Tolerances Designed for Commercial Environments
  • Compatible with CORIOmax HDBaseT input and output modules

    • Typical Installation Types
  • Museums
  • Large Retail Environments
  • High-end Security, Education and Residential
  • Digital Signage
  • Way finding Installations
  • Home Theatre

    • tvONE CORIOmax Compatibility:
  • CORIOmaster C3-540
  • CORIOmaster mini C3-510
  • CORIOmaster micro C3-503
  • HDBT output module for CORIOmaster (CM-HDBT-SC-2OUT-1ETH)
  • HDBT input module for CORIOmaster (CM-HDBT-SC-2IN-1ETH)
    • CORIOmaster Universal Matrix Switch
  • CORIOmatrix - Universal I/O Scaling Matrix Router up to 32 ports, C3-340
  • CORIOmatrix mini Scaling Matrix Router, C3-310
  • HDBT output module for CORIOmatrix (CM-HDBT-XSC-2OUT-1ETH)

    • Brochures - contact us for the following:
  • Extend & Distribute Brochure
  • HD-One DX and LX Brochures
    • User Guide - contact us for the following:
  • HD-One DX/DX 500 and LX/LX500 User Guides.
