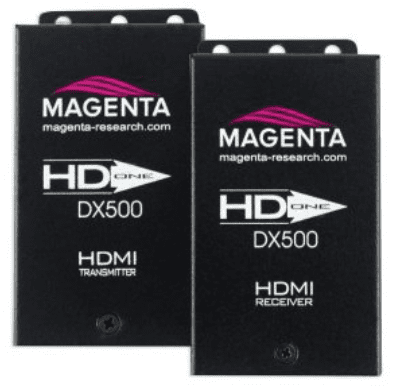

The HD-One DX500 KIT allows you to extend HDMI up to 500 ft.(152m) using economical Unshielded Twisted Pair (UTP) cables, such as Cat5, Cat5e, and Cat6.
This latest version of the HD-One DX500 is a top of the line extender that can extend HDMI at the following resolutions and distances:
4K UHD at up to 200 ft.
1920x1080, 1080p/60 at up to 500 ft.
If you do not need to go up to 500 feet, see the
HD-One DX kit for distances up to 328 ft.
The HD-One DX can send 1920x1200 resolution HDCP-protected video, embedded audio, and IR to a distance of 500 feet (152 meters), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference.
In addition to video, the HD-One DX500 also functions with HDMI embedded audio. Dolby, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period!
See the unboxing of the HD-One LX and HD-One DX Series below:
HD-One DX to extend HDMI up to 328 ft.:
HD-One LX to extend AV, IR, and RS232 over UTP up to 328 ft.:
Kit:2211078-02 TX: 2211095-02
HD-One DX500 to extend HDMI up to 500 ft.:
Kit: 2211114-02 Tx: 2211121-01
HD-One LX500 to extend AV, IR, and RS232 over UTP up to 500 ft.:
Kit: 2211113-02 TX: 2211123-01
Key Features of the HD-One LX/DX and LX500/DX500 Series:
1920x1080, 1080P/60, Resolution, 4K UHD
(HD-One LX/DX) Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
No Adjustments or Tuning Required
328'/100 Meter Reach
200'/60 Meter Reach 4k Resolutions
(HD-One LX/DX) 500’/152 Meter Reach
(HD-One LX500/DX500) HDMI 1.4 Compliant, HDBaseT
Bi-Directional RS-232 Interface
(HD-One LX/LX500) Two-Way IR Support
(HD-One LX/LX500) Includes one IR Emitter/Receiver pair
(HD-One LX/LX500) Tolerances Designed for Commercial Environments
Compatible with CORIOmax HDBaseT input and output modules
Typical Installation Types
Large Retail Environments
High-end Security, Education and Residential
Way finding Installations
tvONE CORIOmax Compatibility:
CORIOmaster mini C3-510
CORIOmaster micro C3-503 HDBT output module for CORIOmaster (CM-HDBT-SC-2OUT-1ETH)
HDBT input module for CORIOmaster (CM-HDBT-SC-2IN-1ETH)
CORIOmaster Universal Matrix Switch
CORIOmatrix - Universal I/O Scaling Matrix Router up to 32 ports, C3-340
CORIOmatrix mini Scaling Matrix Router, C3-310 HDBT output module for CORIOmatrix (CM-HDBT-XSC-2OUT-1ETH)
Brochures - contact us for the following:
Extend & Distribute Brochure
HD-One DX and LX Brochures
User Guide - contact us for the following: HD-One DX/DX 500 and LX/LX500 User Guides.
